Example materials
ISO P · Steel
- Structural steel
- Heat-treatable steel (not hardened)
- Tool steel (soft annealed)
Examples for guidance. Check material condition, hardness and product details.
Example materials
ISO M · Stainless steel
- Austenitic stainless steel (304)
- Austenitic stainless steel (316)
- Duplex stainless steel
Examples for guidance. Check material condition, hardness and product details.
Example materials
ISO K · Cast iron
- Grey cast iron
- Ductile cast iron
- Malleable cast iron
Examples for guidance. Check material condition, hardness and product details.
Example materials
ISO N · Non-ferrous metals
- Aluminium
- Copper
- Brass
- Bronze
Examples for guidance. Check material condition, hardness and product details.
Example materials
ISO S · Titanium and superalloys
- Titanium
- Titanium alloys
- Nickel-based alloys
Examples for guidance. Check material condition, hardness and product details.
Example materials
ISO H · Hardened steels
- Hardened tool steel
- Hardened bearing steel
- Case-hardened steel
Examples for guidance. Check material condition, hardness and product details.
Kurth Engineering GmbH

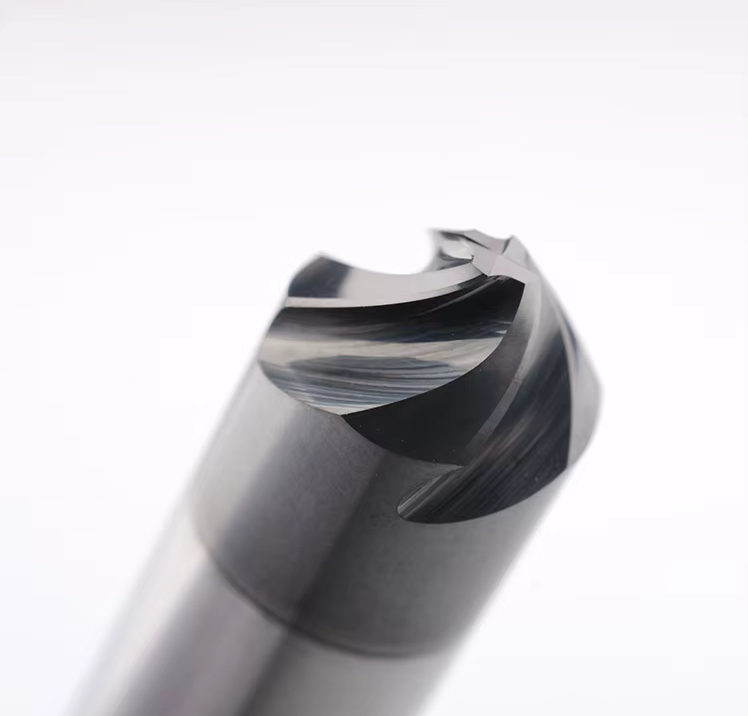

Solid carbide chamfer mill – Universal
Including VAT.
Everything in stock in Switzerland. Dispatched within 1–2 working days.
Technical data
- Typ
- N
- Werkzeugmaterial
- Vollhartmetall (VHM)
- Beschichtung
- TiAlN
- Schaftform
- Zylindrisch (ohne Fläche)
- Schneiden
- 2–4
- Tip shape
- Flat
Application
Variants
7 items · Prices in CHF| Item | Shank Ø | Angle | Tip Ø | Max. chamfer size | L | Z | Availability | Price | Quantity / Order |
|---|---|---|---|---|---|---|---|---|---|
| Shank Ø 4 mmTip Ø 0.5 mm · Max. chamfer 1.75 mmItem no. KE-180-001 | 4 | 90° | 0.5 | 1.75 | 50 | 2 | In stock | CHF 20.50 | |
| Shank Ø 4 mmTip Ø 2 mm · Max. chamfer 1.0 mmItem no. KE-180-002 | 4 | 90° | 2 | 1.0 | 50 | 4 | In stock | CHF 20.50 | |
| Shank Ø 6 mmTip Ø 0.5 mm · Max. chamfer 2.75 mmItem no. KE-180-003 | 6 | 90° | 0.5 | 2.75 | 50 | 2 | In stock | CHF 29.50 | |

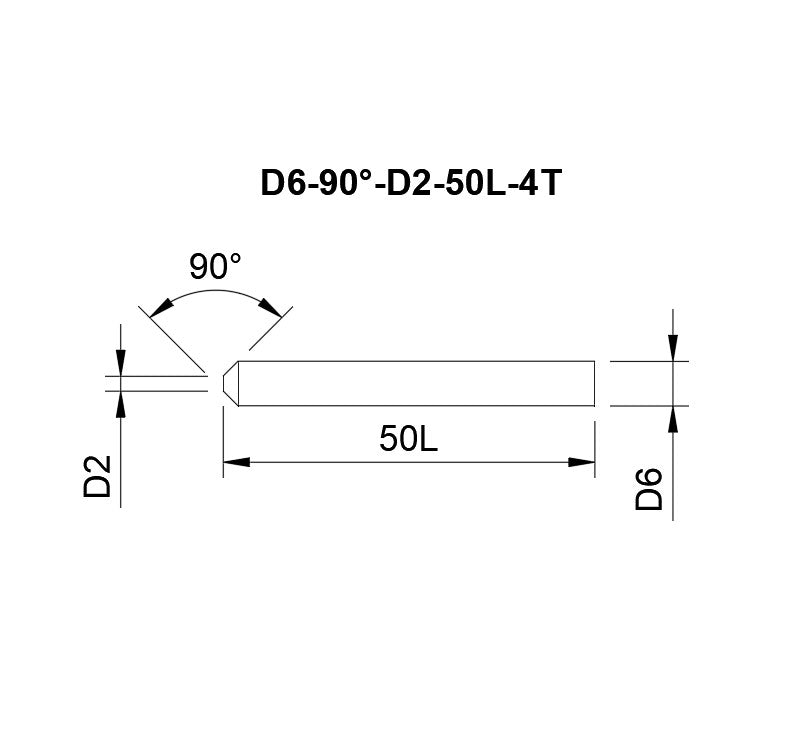

| Shank Ø 6 mmTip Ø 2 mm · Max. chamfer 2.0 mmItem no. KE-180-004 | 6 | 90° | 2 | 2.0 | 50 | 4 | In stock | CHF 29.50 | |
| Shank Ø 8 mmTip Ø 2 mm · Max. chamfer 3.0 mmItem no. KE-180-005 | 8 | 90° | 2 | 3.0 | 60 | 4 | In stock | CHF 39.50 | |
| Shank Ø 10 mmTip Ø 2.5 mm · Max. chamfer 3.75 mmItem no. KE-180-006 | 10 | 90° | 2.5 | 3.75 | 75 | 4 | Currently unavailable | CHF 54.00 | |
| Shank Ø 12 mmTip Ø 3 mm · Max. chamfer 4.5 mmItem no. KE-180-007 | 12 | 90° | 3 | 4.5 | 75 | 4 | In stock | CHF 71.50 |
No matching variant. Please adjust the filters.
Dimensions in mm unless otherwise stated. Price and availability apply to the selected variant.
Max. chamfer size = (shank Ø − tip Ø) ÷ 2.
